BoosterTech Campus Overview
DDR Solutions

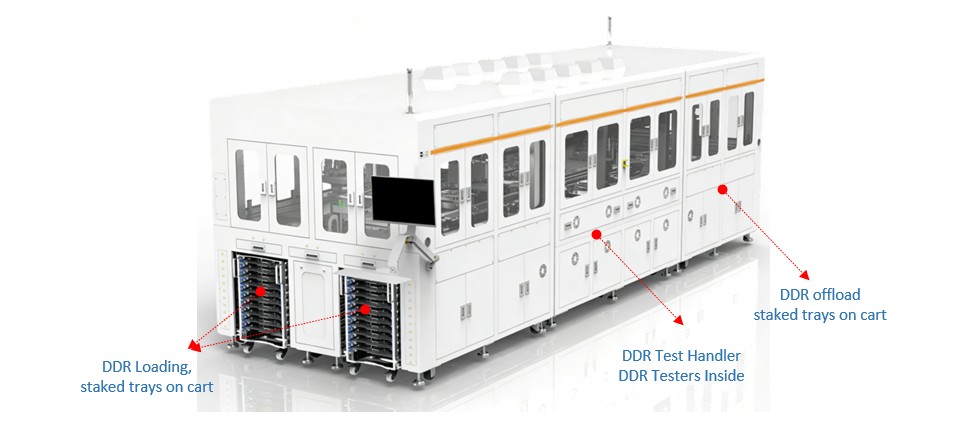

DDR Auto Test Line
|
Project Brief |
DDR Auto Test Line |
|
Product Brief |
DDR5 |
|
Delivery Location |
VN |
|
Key Features |

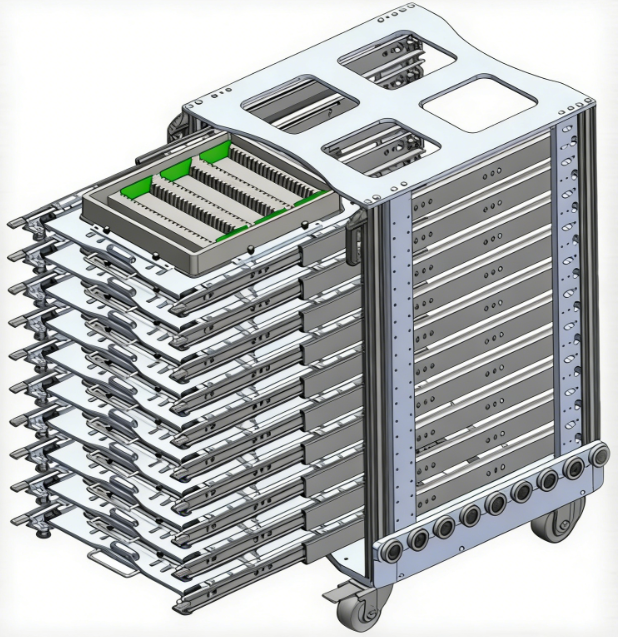

● Operation Mode – fully automated DDR programming and testing, product loading and offloading with cart ● Line Capacity – Testing time ~40 mins ● Material Feeding – üStacked trays on cart, for loading and unloading ● Material Transfer – Dual layer circular conveyor, common carrier ● Material Handling – Dual gripper to same pick & place time ● Robot – Gantry systems ● Gripper Quick Changeover – quick lock/exchange mechanism for gripper exchange ● Vision Embedded – robot guiding ● Modular design – easy for repurpose and reconfiguration üCommon frame, üIndividual feeding and offload cell üIndependent tester and handler design üConfigurable qty of testers (1~10, 4 testing cavities each), support different throughput üSegmented conveyors ● Serviceability – easy access to system control module and functional modules inside |
|
Process Coverage |
● SPD Programming (RDIMM, VDIMM) ● Open/short Test ● Power Cycle Test & Bootloader Verification ● Function Test, DRAM Pattern, VN Function ● Factory Rest Default ● SPD Verification |
